• Rear wheel drive
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Alternator, 125 amps
• Pickup box, Fleetside, all-welded steel with double wall construction and corrosion protection with 4 cargo tie-downs, tailgate, 2-position (Locking feature not available on Regular or Extended Cab models.)
• Suspension, front independent with coil springs (2WD models only.)
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs
• Steering, power, rack-and-pinion
• Brakes, 4-wheel antilock, front disc/rear drum

• Wheels, 4 - 16" x 6" (40.6 cm x 15.2 cm) steel (2WD models only.)
• Tires, P215/70R16 all-season, blackwall (2WD models only.)
• Tire, compact spare
• Bumpers, front and rear chrome with a Dark Smoke Gray pad on the rear step-style bumper
• Air dam, Ebony
• Fascia, front Dark Smoke Gray
• Mirrors, outside manual, manual-folding
• Wipers, front intermittent with washers
• Bedliner
• Tailgate, 2-position

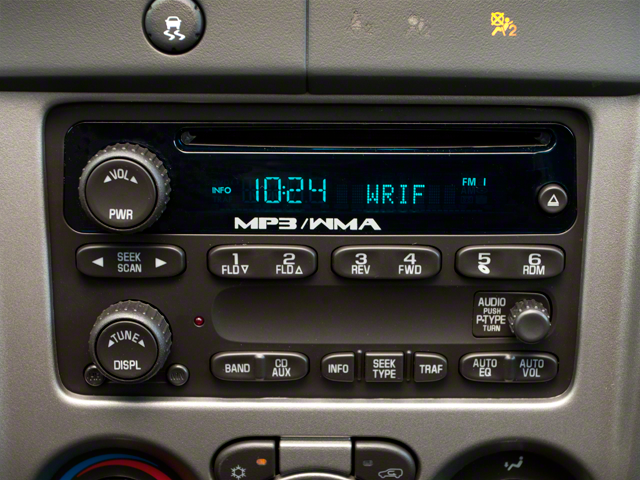

• Audio system, AM/FM stereo with seek-and-scan and digital clock
• Audio system feature, uplevel speaker system
• Bluetooth® for Phone (Deleted when (UE0) OnStar delete is ordered.)

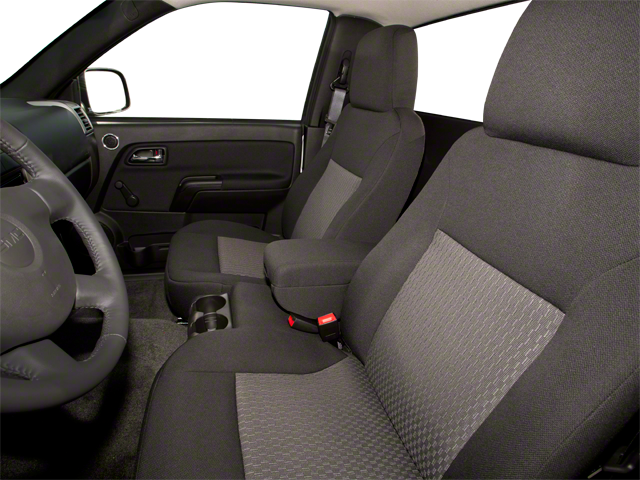

• Seats, front 60/40 split-bench with integral outboard head restraints and dual cup holders. With (**J) SLE Deluxe Cloth, also includes manual recliners and armrest with integral storage.
• Floor covering, Ebony carpeting
• Floor mats, rubberized-vinyl front and rear (Requires (B30) Ebony carpeted floor covering.)
• Steering wheel, leather-wrapped
• Steering column, Tilt-Wheel
• Theft-deterrent system, vehicle, PASSlock
• Warning tones headlamp on, key-in-ignition, driver safety belt unfasten, turn signal on and critical Driver Information Center active
• Windows, manual driver and front passenger
• Door locks, manual
• Cruise control
• Air conditioning, single-zone manual
• Power outlets, 2 auxiliary, covered, 12-volt
• Accents, interior Titanium Nova Silver-colored air outlets and center control stack with chrome door handle bezels, uplevel instrument cluster bezel, front upper door speaker bezel and air vent sliders
• Door trim, integral armrests and driver- and front passenger-side map pockets with padded cloth inserts
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, padded with cloth includes front passenger vanity mirror
• Assist handle, front passenger
• Coat hook, driver-side rear

• StabiliTrak (Includes traction control.)
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions with Passenger Sensing System (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat outboard occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Door Unlock, Turn-by-Turn Navigation with OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling. (Visit onstar.com for details and system limitations.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Safety belts, 3-point, driver and right-front passenger, adjustable (center position lap belt with bench seat only)
• Tire Pressure Monitor

ENGINE, 2.9L DOHC 4-CYLINDER SFI

• (185 hp [137.9 kW] @ 5600 rpm)
• 190 lb-ft [263.2 Nm] @ 2800 rpm) (STD)

• WORK TRUCK PREFERRED EQUIPMENT GROUP Includes Standard Equipment LLV
• M30
• UMR

• Mileage
• Fuel Economy Est-Combined (MPG): 21
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2633
• Gross Axle Wt Rating - Rear (lbs): 2896
• Curb Weight - Front (lbs): 1888
• Curb Weight - Rear (lbs): 1478
• Gross Vehicle Weight Rating Cap (lbs): 4850
• Gross Combined Wt Rating (lbs): 6000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 2400
• Dead Weight Hitch - Max Tongue Wt. (lbs): 240
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 2400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 360
• Suspension
• Suspension Type - Front: Coil Springs
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2633
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2633
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Tires
• Front Tire Order Code: QRD
• Rear Tire Order Code: QRD
• Spare Tire Order Code: ZCY
• Front Tire Size: P215/70R16
• Rear Tire Size: P215/70R16
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6
• Rear Wheel Size (in): 16 x 6
• Spare Wheel Size (in): Compact
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 39.4
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 111.3
• Length, Overall w/o rear bumper (in): 192.4
• Width, Max w/o mirrors (in): 67.6
• Height, Overall (in): 64.9
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 110.9
• Cab to Axle (in): 34.2
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.8
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 44.0
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 39.6
• Front Leg Room (in): 44.0
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 53.3
• Summary
• Vehicle Name: GMC Canyon
• Body Style: Regular Cab
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.9
